27" Industrial TFT LCD with Custom PCAP Touch *FHD 350 cd/m2 Glove/Multi-Touch -20°C-60°C Cover Glass Tempered Glass

Product Categories
Shenzhen Saef Technology Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

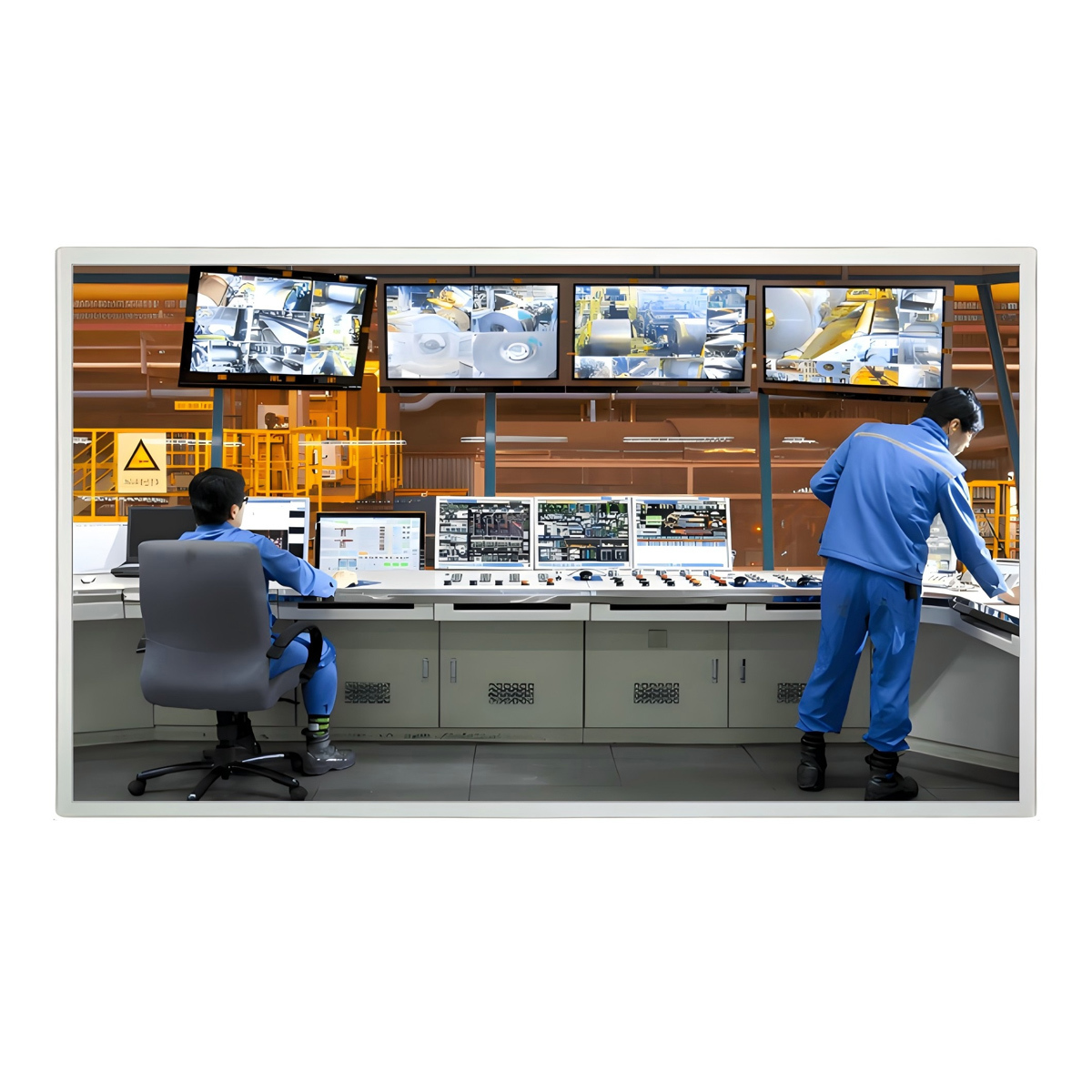

27" Industrial TFT LCD with Custom PCAP Touch *FHD 350 cd/m2 Glove/Multi-Touch -20°C-60°C Cover Glass Tempered Glass

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFTO2700SM-7317AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : the lowest market price guaranteed

Payment Terms : PayPal, T/T, Western Union, Ali-Pay, WeChat Pay

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Screen Size : 27-inch Diagonal

Resolution : 1920×1080 Pixels (RGB Stripe)

Brightness : 350 cd/m²

Storage Temp. : -20°C to +60°C

Operating Temp. : 0°C to +50°C

Contrast Ratio : 1000:1 (Typ.)

Interface : Dual-Channel LVDS (2 Pixel/Clock)

Response Time : 14ms (on/off, Typ.)

Backlight : 30,000 hours

Surface Treatment : AG/AR/AF Coatings (Selectable)

Touch Technology : PCAP(CTP) Optional

Cover Glass : Gorilla Glass/Tempered Glass/PMMA (Custom)

Touch Points : 10-Point Multi-Touch

Touch Interface : I²C/USB/RS232 (Configurable)

IC Options : EETI, ILITEK, Cypress, Goodix

Customization : Silk Printing, Logo, Cut-outs

Compliance : REACH & RoHS Compliant

Contact Now

Fully Customizable Industrial Display with PCAP Touch

The SFTO2700SM-7317AN redefines industrial visualization with integrated Projected Capacitive (PCAP) touch technology. Combining a 27" FHD TFT LCD (350 cd/m²) with glove-compatible touch sensitivity, it's engineered for medical interfaces, factory automation, and transportation systems.

Key Customization Options
✅ Rugged Touch Solutions

  • Glass Options: Chemically-strengthened Gorilla Glass® (Medical), Tempered Glass (Industrial), PMMA (Cost-sensitive)

  • Coatings: Anti-Glare (AG) for sunlight readability, Anti-Reflective (AR) for medical imaging, Anti-Fingerprint (AF) for kiosks

  • Edge Treatments: Polished, bevelled, or 2.5D curved edges

✅ Advanced Touch Integration

  • Sensor Configurations: Glass sensors (high durability), Film sensors (lightweight), Film+Film (flex mounting)

  • Controller ICs: EETI for medical EMC, Cypress for automotive (-40°C), Goodix for multi-touch gestures

  • Interfaces: I²C (embedded systems), USB (plug-and-play), RS232 (legacy equipment)

✅ Industrial-Grade Reliability

  • Operation at 0°C~50°C with condensation resistance

  • 24-cycle thermal shock tested (-20°C↔60°C)

  • IP65 front seal when combined with touch panel

Industry Applications

  • Medical: Surgical displays with antimicrobial printing
    Industry 4.0: Glove-operable HMI with AR coating
    Marine: Salt-spray resistant touch navigation systems
    Automotive: Dashboard displays with -30°C cold-start

Certifications

  • EN 60601-1 (Medical), ISO 16750 (Automotive)

  • REACH SVHC compliant, RoHS 3

  • EMC: EN 55032 Class B

Request Customization

Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.

Specifications

Items Unit Specification
Screen Diagonal mm 27.0”
Active area mm 597.888(H) x 336.312(V)
Pixels H x V - 1920(x3) x 1080
Pixels Pitch um 31.14(per one triad) x31.14
Pixel Arrangement - R.G.B. Vertical Stripe
Display Mode - Normally Black
Response Time Msec 14ms (typ., on/off)
Weight Grams TBD
Electrical Interface - Dual channel LVDS,8 bits RGB data input
Support Color - 16.7M colors
Surface Treatment - Anti-Glare,3H
Operating Temperature ℃

0 to +50
Storage Temperature ℃ -20 to +60

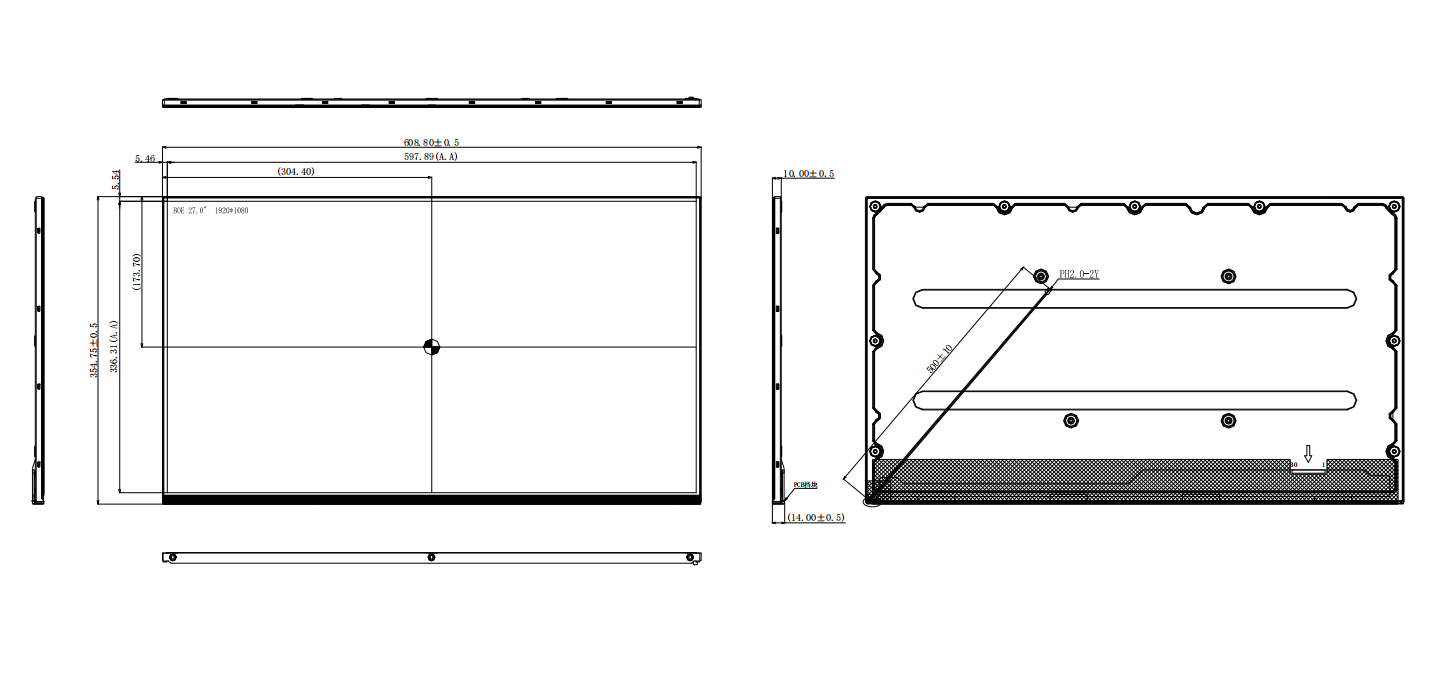

External Dimensions

27" Industrial TFT LCD with Custom PCAP Touch *FHD 350 cd/m2 Glove/Multi-Touch -20°C-60°C Cover Glass Tempered Glass

Interface Pin Definition

Pin No. Symbol Description
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 BIST BIST
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Negative LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Ground
25 CTL CTL_DVR
26 CE CE_DVR
27 NC No connection
28 VDD Power Supply Input Voltage 5V
29 VDD Power Supply Input Voltage 5V
30 VDD Power Supply Input Voltage 5V

Optical Characteristics

Paramete Conditions Min. Typ. Max. Unit

Viewing Angle

(CR>10)

 Horizontal θL 89 -

degree
θR 89 -
Vertical θT 89 -
θB 89 -
Contrast Ratio Center 700 1000 - -
Response Time Tr+Td - 14 20 ms

CF Color Chromaticity

(CIE1931)

 Red x

Typ. -0.03

 0.646

Typ. +0.03

 -
Red y 0.341 -
Green x 0.327 -
Green y 0.612 -
Blue x 0.143 -
Blue y 0.041 -
White x 0.283 -
White y 0.289 -
Center Luminance of white YLI 300 350 cd/m2

Backlight Characteristics

Parameter Symbol Value Unit
MiN. Typ. Max.
Light Bar input Voltage VLED 51 54 57 V
Light Bar input Current ILED - 480 - mA
LED Life Time LBL 20000 30000 - Hrs

Product Image

27" Industrial TFT LCD with Custom PCAP Touch *FHD 350 cd/m2 Glove/Multi-Touch -20°C-60°C Cover Glass Tempered Glass

27" Industrial TFT LCD with Custom PCAP Touch *FHD 350 cd/m2 Glove/Multi-Touch -20°C-60°C Cover Glass Tempered Glass
